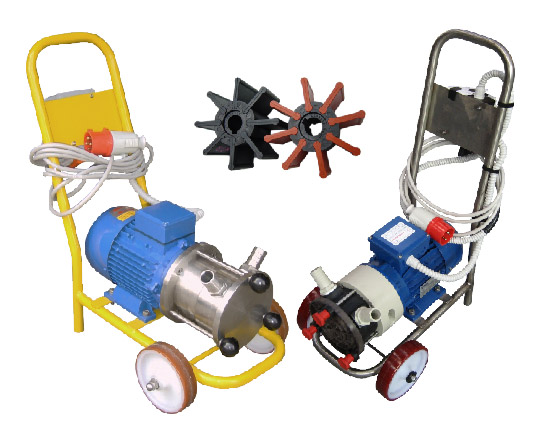

Self-priming centrifugal pumps
ATM series
Features
PP construction materials
Horizontal self-priming centrifugal electric pump in plastic with external mechanical seal. It has an ignition pre-chamber to be filled only when the pump is started, and an internal disk for separating the air from the process liquid.
The pump body in PP is made of a solid piece, with high thickness in order to achieve maximum mechanical resistance and resistance to corrosion and thermal shocks. The particular design of the body allows the pump to self-prime in a short time.
Fields of application
Pumping of acids, bases, hydrocarbons, diathermic oils, liquefied gases, aggressive liquids, toxic liquids.
Chemical industry in general, galvanic applications, washing, purification and water treatment plants.
Technical data
Flow rate (Q) up to 55 m³/h w.g.
Pressure head (H) up to 35 m
Temperature (T) up to 70°C
Rotation speed 2900 RPM
ATP/ATX series
Features
PP-PPS/AISI316 construction materials
The ATP/ATX pumps are self-priming centrifugal pumps designed to transfer acidic, alkaline and viscous fluids.
The impeller consists of a core in PPS (Polyphenylene sulphide) and an exclusive system with interchangeable removable blades, available in various elastomers: Viton - EPDM - Silicone - Neoprene - NBR.
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, syrup, sugar, dairy, electronic, galvanic, water treatment industries, as well as other hazardous chemical applications.
Technical data
Flow rate (Q) up to 20 m³/h w.g.
Pressure head (H) up to 25 m
Temperature (T) up to 90°C
Rotation speed 4/6 poles 1450/900 RPM
