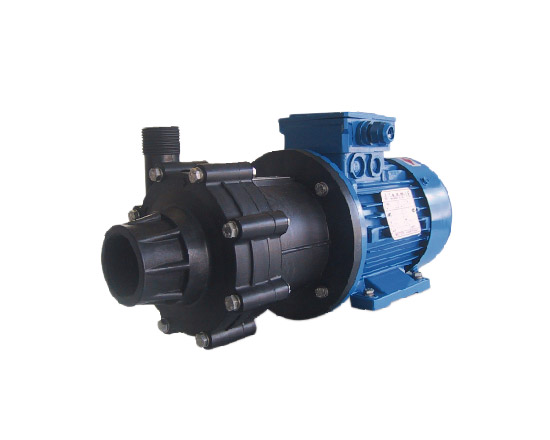

Magnetic drive centrifugal pumps
PM Series
Features
PP-PVDF-AISI316 construction materials
PM horizontal centrifugal electric pumps in thermoplastic with magnetic drive. The special feature of this pump is that it has no mechanical seal.
The advantages are obvious, the impeller of the pump is not directly connected to the motor shaft, therefore no mechanical seal is needed, which eliminates the possibility of leakage of the pumped liquid caused by wear.
It’s simple and robust construction was designed to ensure efficient and long-lasting service and to minimise downtime during maintenance.
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, water treatment industries, as well as other hazardous chemical applications.
Technical data
Flow rate (Q) up to 55 m³/h w.g.
Pressure head (H) up to 35 m
Temperature (T) up to 90°C
Rotation speed 2900 RPM
DM Series
Features
PP-PVDF construction materials
DM horizontal centrifugal electric pumps in thermoplastic with magnetic drive. The special feature of this pump is that it has no mechanical seal.
The advantages are obvious, the impeller of the pump is not directly connected to the motor shaft, therefore no mechanical seal is needed, which eliminates the possibility of leakage of the pumped liquid caused by wear.
It’s simple and robust construction was designed to ensure efficient and long-lasting service and to minimise downtime during maintenance.
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, water treatment industries, as well as other hazardous chemical applications.
Technical data
Flow rate (Q) up to 20 m³/h w.g.
Pressure head (H) up to 25 m
Temperature (T) up to 90°C
Rotation speed 4/6 poles 1450/900 RPM
